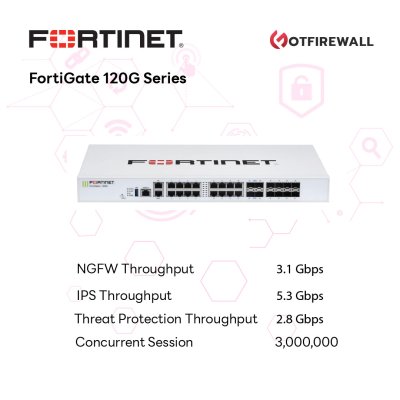

FortiGate 120G Firewall
Performance
- IPS Throughput 5.3 Gbps
- NGFW Throughput 3.1 Gbps
- Threat Protection Throughput 2.8 Gbps
- Firewall Latency (64 byte UDP packets) 3.17 μs
- Firewall Throughput (Packets Per Second) 42 Mpps
- Concurrent Sessions (TCP) 3 Million
- New Sessions/Second (TCP) 140,000
- Firewall Policies 10,000
- IPsec VPN Throughput (512 byte packets) 35 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels 2,000
- Client-to-Gateway IPsec VPN Tunnels 16,000
Interfaces
- 1x RJ45 Console Port
- 2x RJ45 HA and Management Ports
-16x GE RJ45 Ports
- 4x 10GE SFP+ FortiLink Slots
- 8x GE SFP Slots
